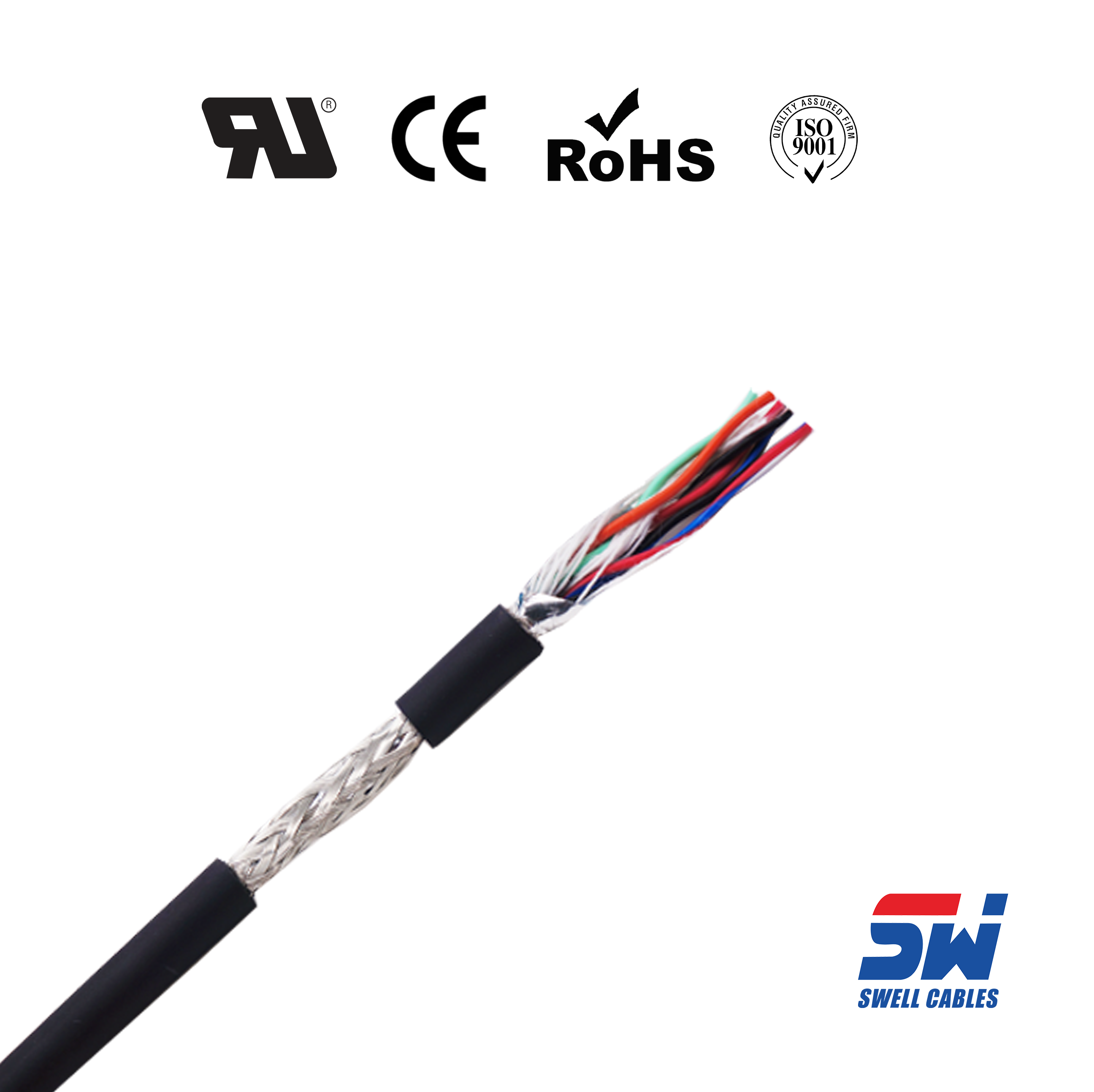

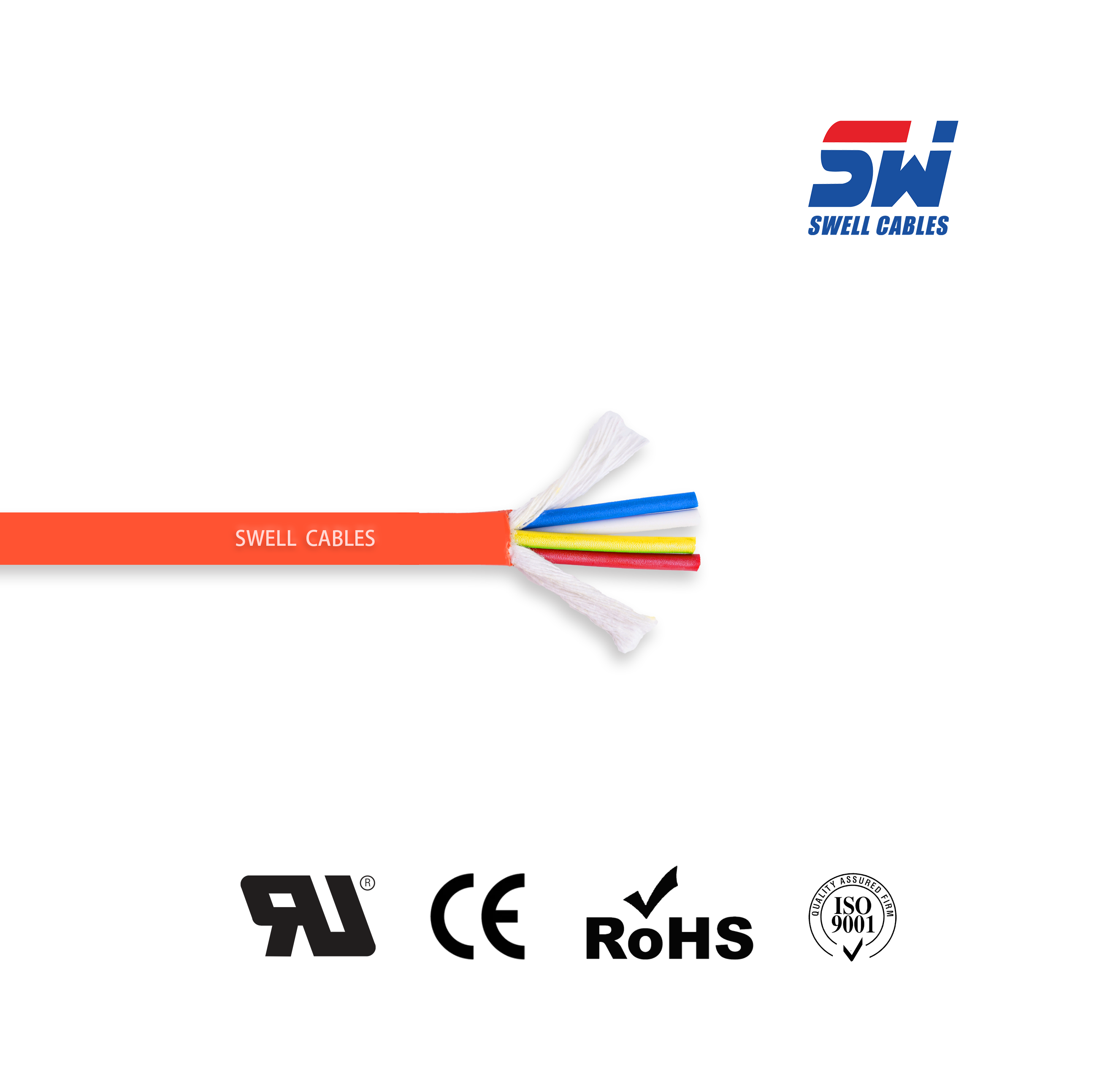

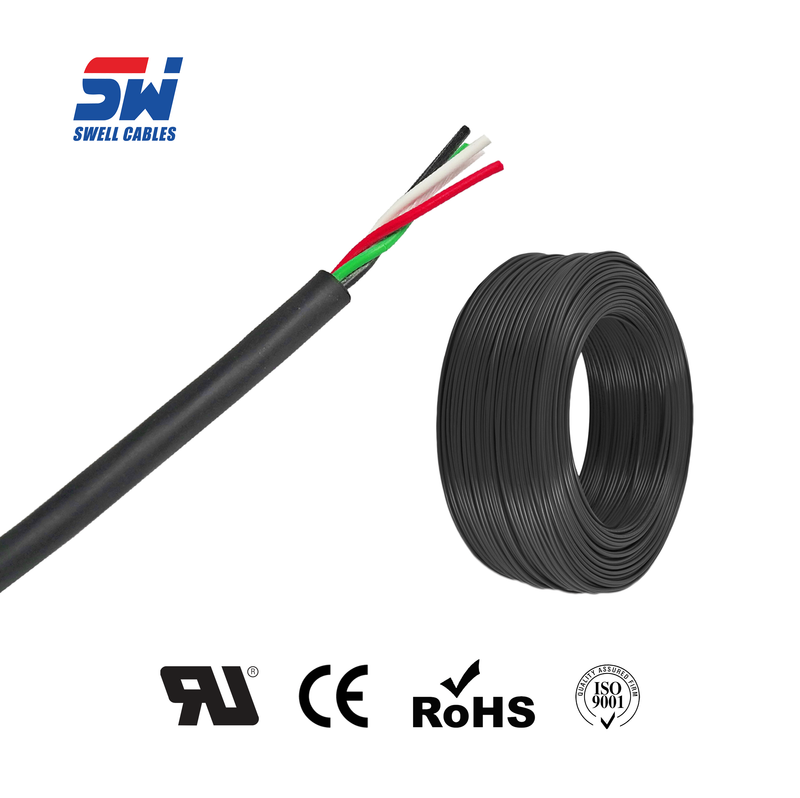

UL2464 is a multi-conductor PVC insulated cable designed for signal and control wiring in electronic equipment. Rated for 300V and 80°C, it offers optional shielding for EMI protection, flame resistance, and easy installation. Ideal for control systems, industrial equipment, and computers. SWELL CABLES provides custom options for OEM needs.
KEY PARAMETERS
Temperature Rating: 80°C
Voltage Rating: 300V
Conductor: Stranded, Tinned or Bare Copper
Insulation: PVC
Shield: Optional (Aluminum foil / Braided)
Jacket: PVC
Standards: UL 758 AWM Style 2464
Flame Test: UL Cable Flame Test
Compliance: RoHS, REACH
PRODUCT STRUCTURE
Conductor: Stranded tinned or bare copper
Suitable for flexible routing and interference-sensitive environments
ADVANTAGE
Multi-core design for signal transmission
Optional shielding for EMI protection
Flexible and easy to install
Flame-resistant and durable
Suitable for internal and external wiring
APPLICATIONS
Control systems
Industrial equipment
Computers & peripherals
Audio & video systems
Instrumentation
Typical customers include: BYD, GEELY, SHANCMAN
SPECIFICATIONS
CONDUCTOR | INSULATION | SHIELD | BRAID | JACKET | Conductor resistance 20℃ | DIELECTRIC STRENGTH |
AWG | Construction | Diameter | Core count （No.） | Nominal Thickness | Diameter | Construction | Construction | Nominal Thickness | Diameter | Tinned copper | VAC,1MIN |
22 | 17/0.16 | 0.76 | 2 | 0.23 | 1.30 | AL/MYLAR | 16/6/0.10 | 0.76 | 4.70 | 59.4 | 2000 |
3 | 1.30 | 16/7/0.10 | 4.90 |
4 | 1.30 | 16/8/0.10 | 5.30 |
5 | 1.30 | 16/8/0.10 | 5.80 |
20 | 26/0.16 | 0.94 | 2 | 0.23 | 1.50 | AL/MYLAR | 16/7/0.10 | 0.76 | 5.10 | 36.7 | 2000 |
3 | 1.50 | 16/8/0.10 | 5.30 |
4 | 1.50 | 16/8/0.10 | 5.70 |
5 | 1.50 | 16/8/0.10 | 6.30 |
Swell Cable is proud to offer our Custom Wire Services
Swell Cables provides full-service custom wire manufacturing, supporting:
If you have any questions or need any information about our Services, feel free to contact us! It only takes one call or message to get experienced assistance.
COMPLIANCE & CERTIFICATION
Our UL2464 wires comply with international standards and regulations:
UL Certified (UL758 / UL3266)
CSA C22.2
IEC 60228
RoHS Directive 2015/65/EU
REACH EC 1907/2006
Low Voltage Directive 2014/35/EU
UL File Number: E484530
PACKAGING & DELIVERY

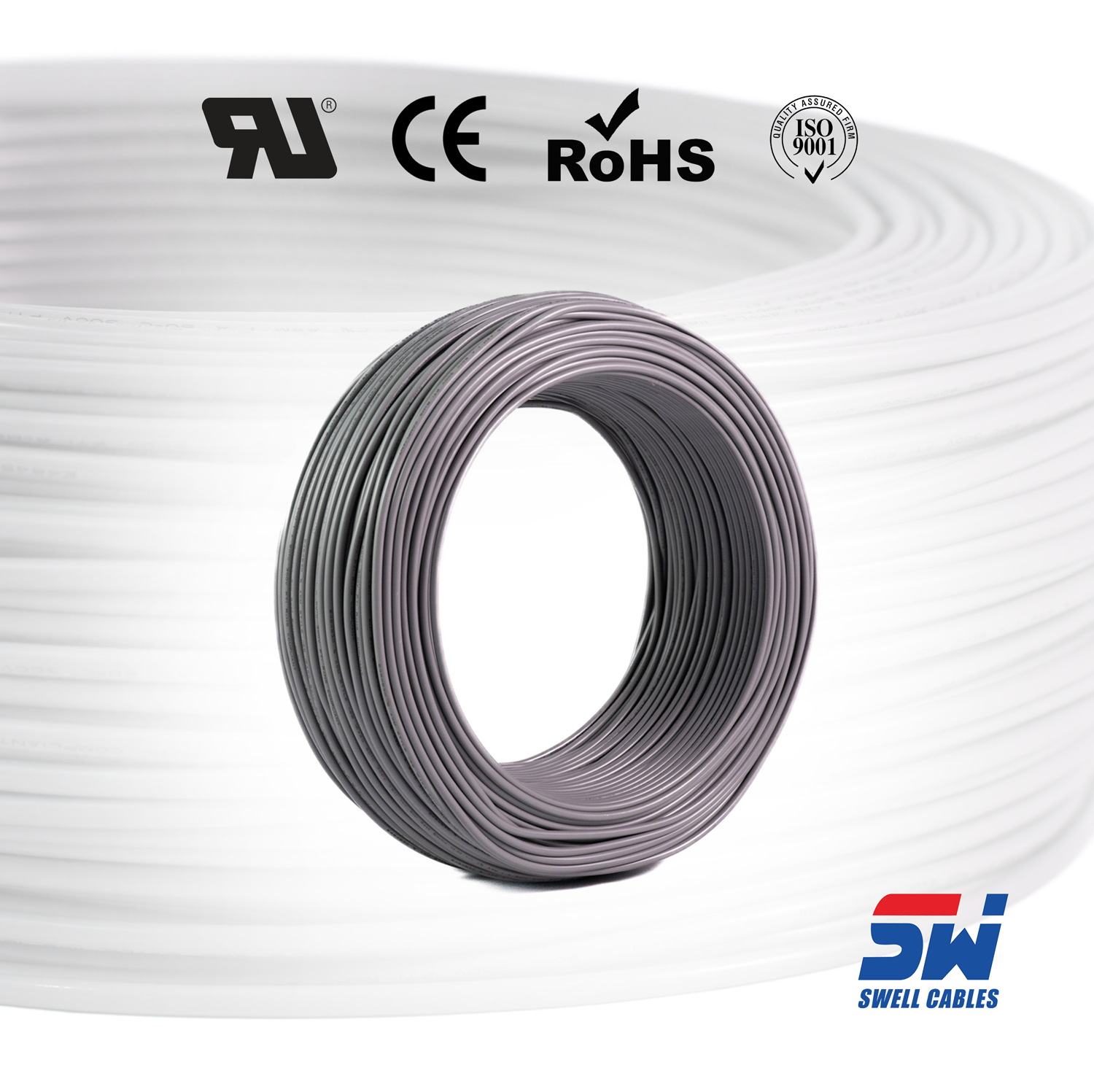

Standard coil or spool packaging
Custom packaging available
Fast production lead time
Export-ready packaging
CUSTOMIZATION OPTIONS
We support full customization:
Wire gauge (AWG)
Color
Length (cut-to-length)
Pre-stripped ends
Harness/kits supply
FAQ
Q1: What is UL2464 cable used for?
Used for signal transmission and control wiring in electronics and equipment.
Q2: Does UL2464 support shielding?
Yes, shielding options like foil or braid are available.
Q3: Can it be used externally?
Yes, for external interconnection in protected environments.
Q4: Do you support customization?
Yes, including core count, shielding, and length.
