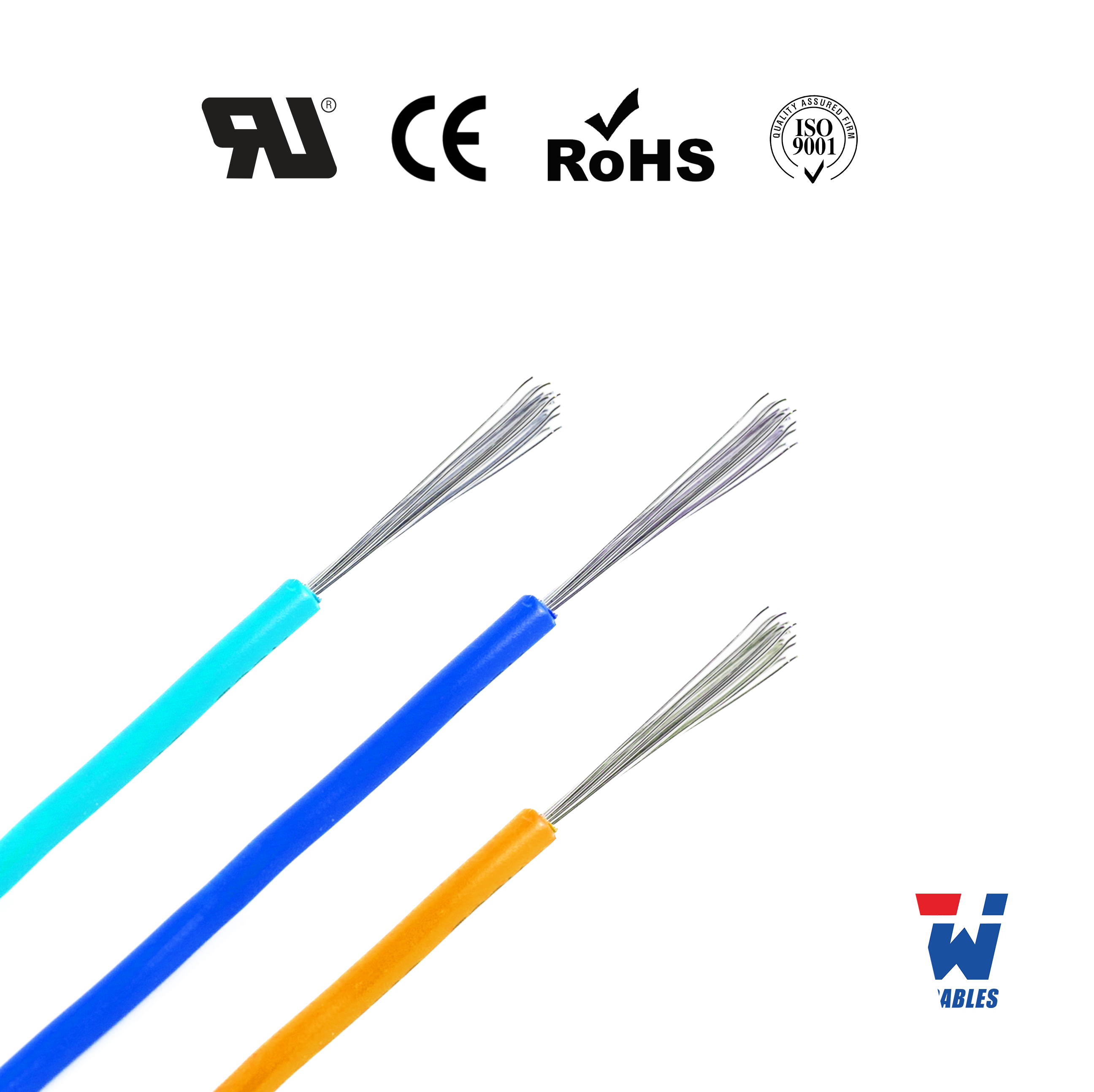

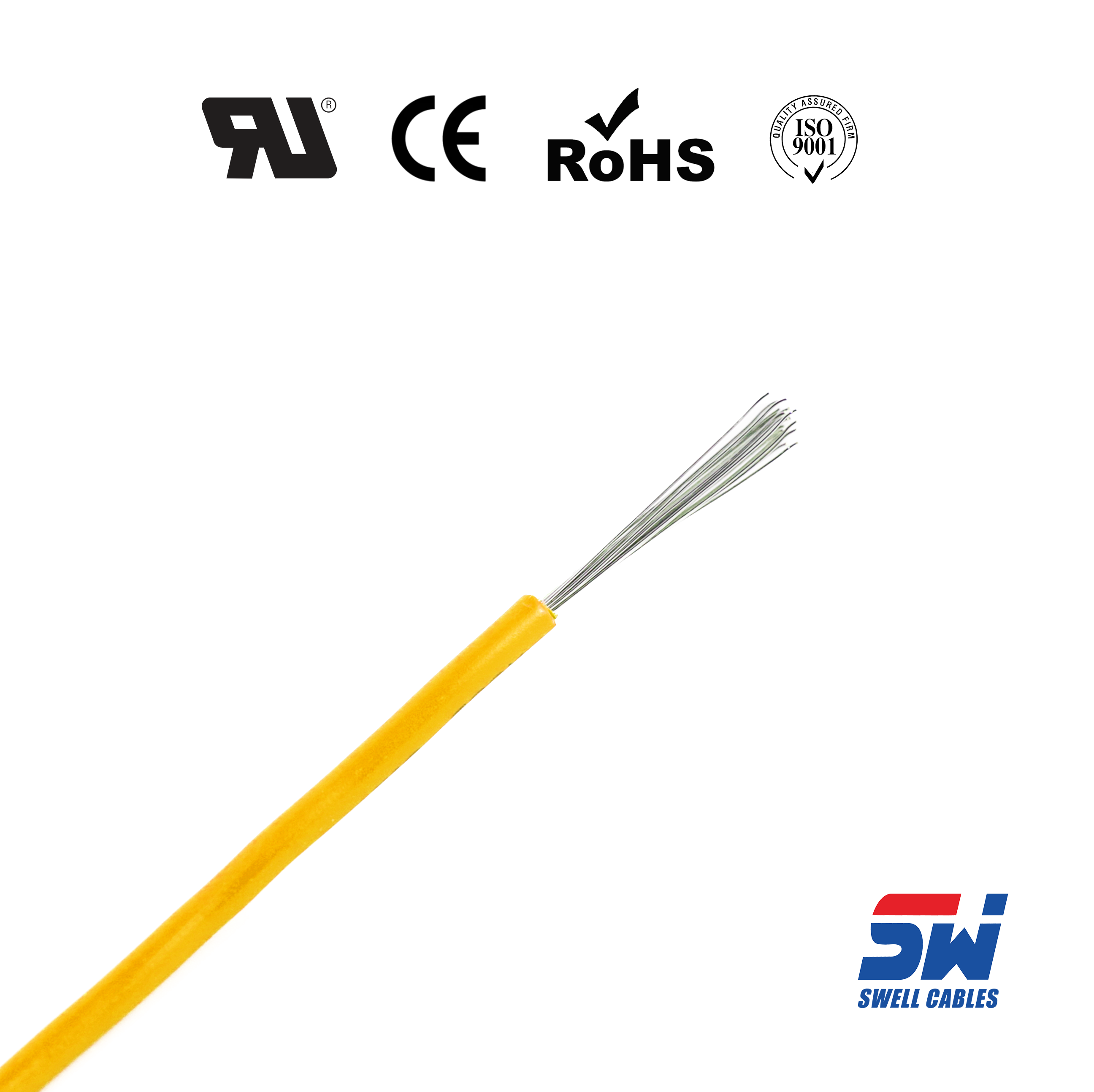

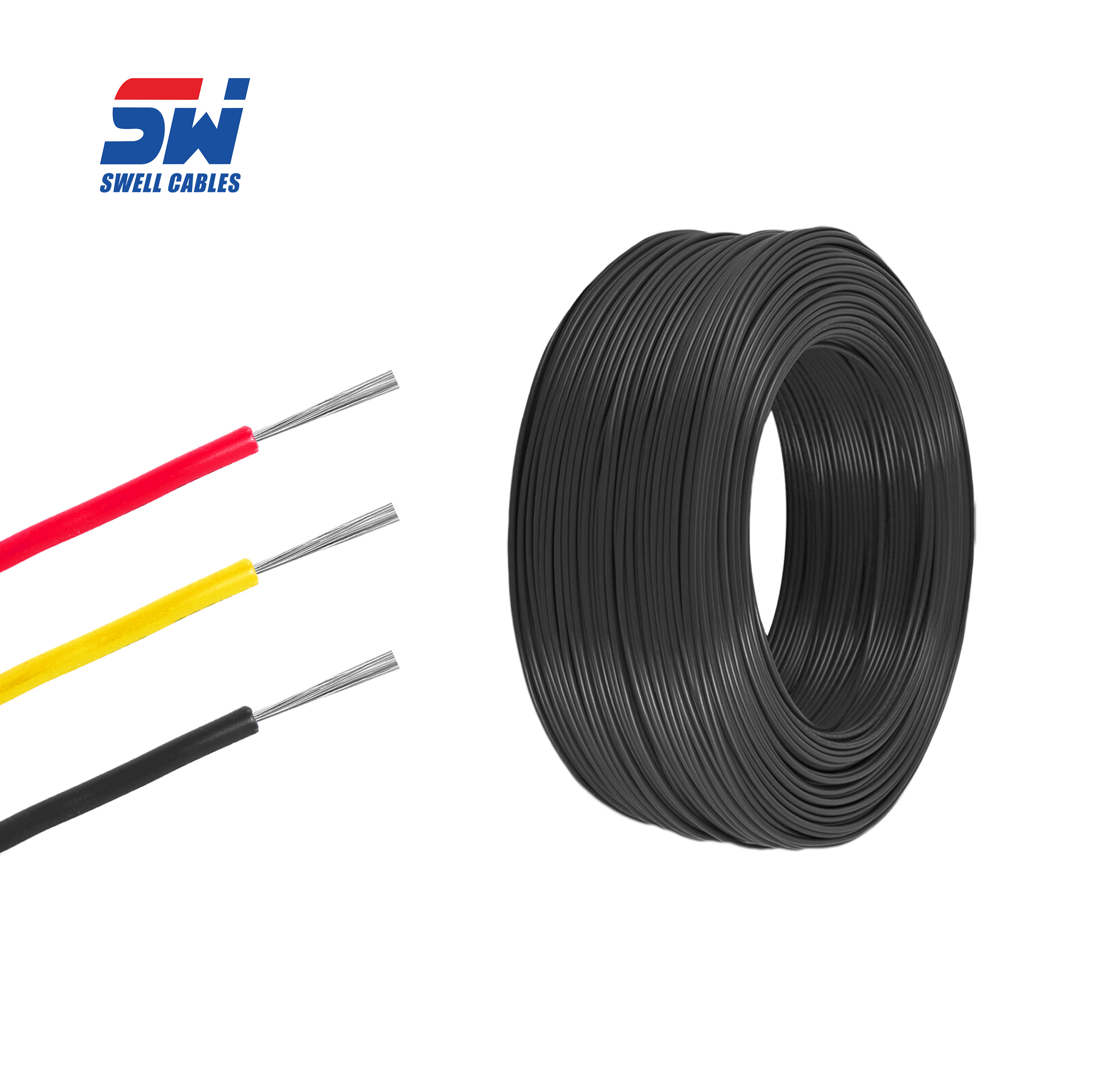

UL11627 Wire for High Voltage Applications

UL11627 hook up wire is a high-voltage PVC insulated single-core wire designed for internal wiring of electrical and electronic equipment. Manufactured in accordance with UL758 AWM standards, it provides excellent electrical insulation, mechanical durability, and resistance to environmental factors such as oil, moisture, and chemicals.

Swell Cables offers UL11627 wire in a wide range of conductor sizes, with both solid and stranded constructions. It is optimized for high-voltage applications requiring stable performance, flexibility, and long service life.

KEY PARAMETERS

• Temperature Rating: 105°C (221°F)

• Voltage Rating: 2000 Volts

• Conductor: Solid or Stranded, Tinned Copper or Bare Copper

• Insulation: PVC (Polyvinyl Chloride)

• Standards: UL 758 AWM Style 11627

• Flame Propagation: UL VW-1, CSA FT1

• Regulatory Compliance: RoHS, REACH compliant

• Size Range: 30 AWG – 2000 kcmil

PRODUCT STRUCTURE

Conductor: Tinned copper (solid or stranded)

Insulation: High-strength extruded PVC

Designed for high-voltage insulation reliability and flexible installation in industrial environments

ADVANTAGE

• High voltage rating up to 2000V for demanding applications

• Durable PVC insulation with excellent mechanical strength

• Resistant to oil, moisture, solvents, and environmental stress

• Good flexibility for routing and installation

• Stable electrical performance under high voltage conditions

• Supports custom sizes, cutting, and processing

APPLICATIONS

UL11627 hook up wire is widely used in:

• Energy storage systems (ESS)

• Battery connections

• Power modules and inverters

• Industrial machinery

• Control panels

• Solar power systems

• EV charging equipment

Typical customers include: BYD, GEELY, SHANCMAN

SPECIFICATIONS

Swell Cable is proud to offer our Custom Wire Services

Swell Cables provides full-service custom wire manufacturing, supporting:

• Engineering projects

• High-temperature applications

• OEM and bulk production

• Precision electronic assembly

If you have any questions or need any information about our Services, feel free to contact us! It only takes one call or message to get experienced assistance.

COMPLIANCE & CERTIFICATION

Our UL11627 wires comply with international standards and regulations:

• UL Recognized (UL758 / Style 11627)

• RoHS Directive

• REACH Regulation

UL File Number: E484530

PACKAGING & DELIVERY

• Standard coil or spool packaging

• Custom packaging available

• Fast production lead time

• Export-ready packaging

CUSTOMIZATION OPTIONS

We support full customization:

• Wire gauge (AWG)

• Color

• Length (cut-to-length)

• Pre-stripped ends

• Harness/kits supply

FAQ

Q1: What is UL11627 wire used for?
UL11627 wire is used for high-voltage internal wiring in equipment such as energy storage systems, power modules, and industrial machinery.

Q2: What is the voltage rating of UL11627 wire?
UL11627 is rated for 2000V, making it suitable for high-voltage applications.

Q3: Can UL11627 wire be used in energy storage systems?
Yes, it is widely used in ESS, battery connections, and inverter systems due to its high voltage rating and durability.

Q4: Do you provide custom wire solutions?
Yes, we offer customized sizes, colors, cutting, and processing services.
