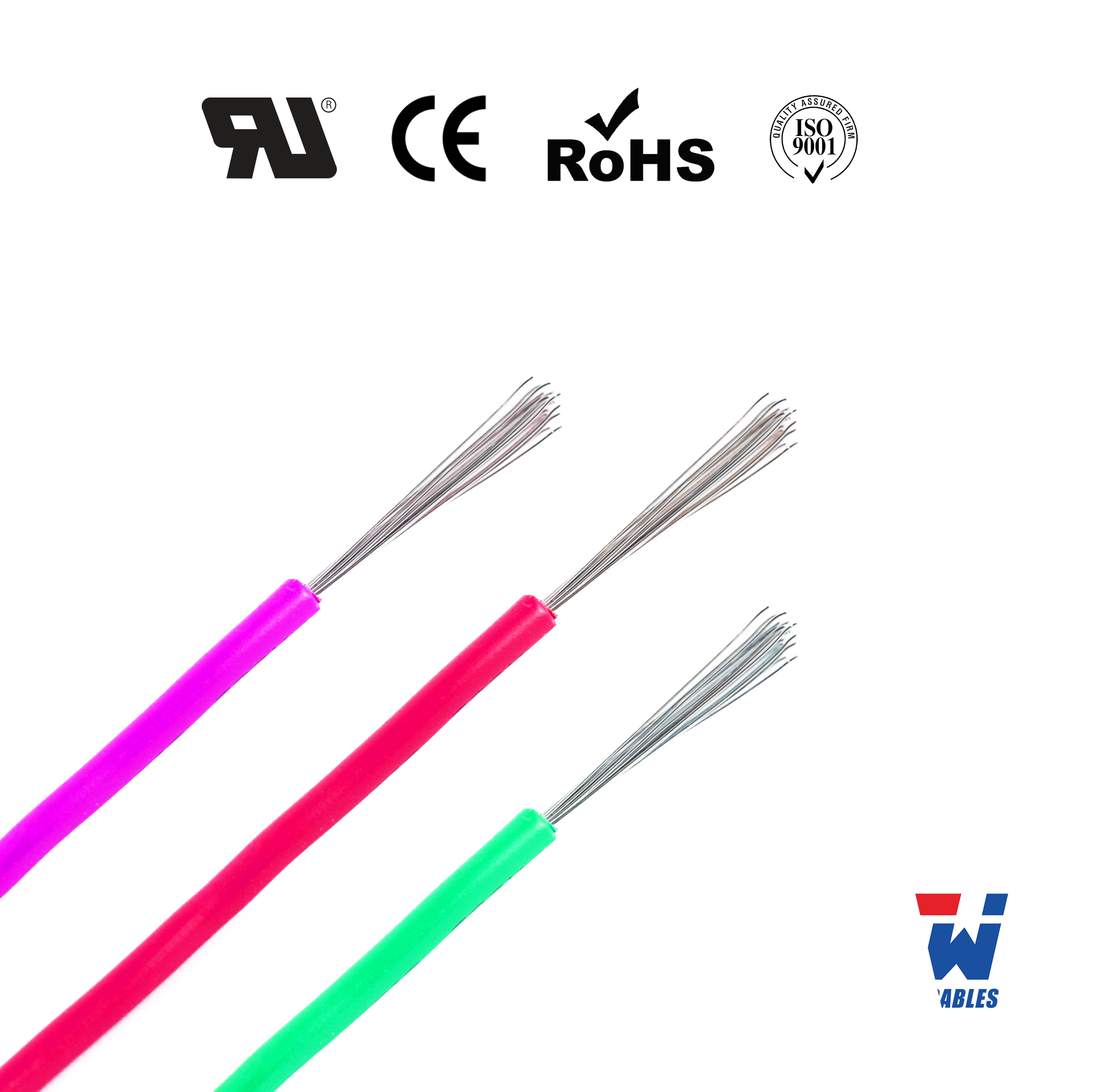

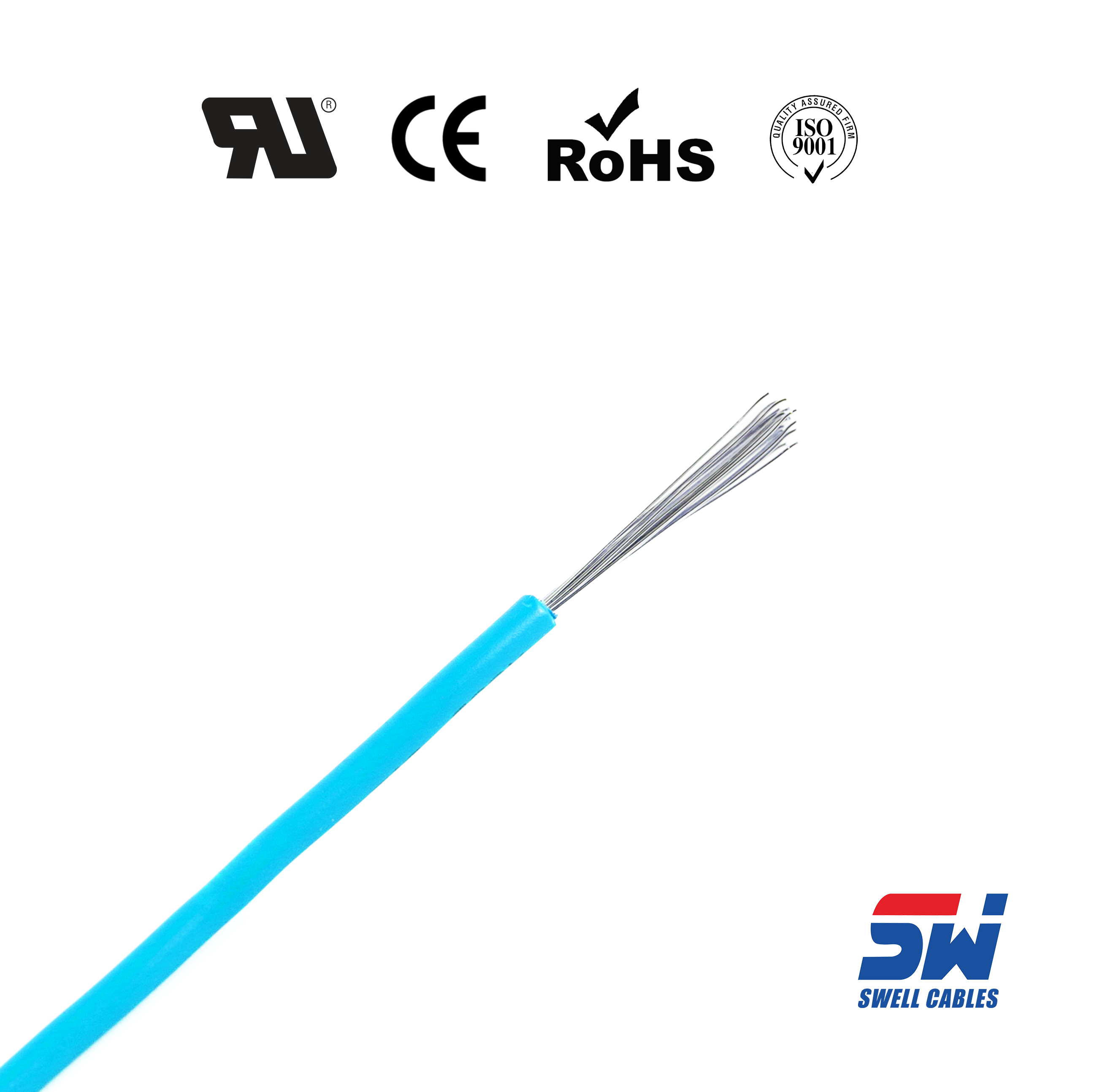

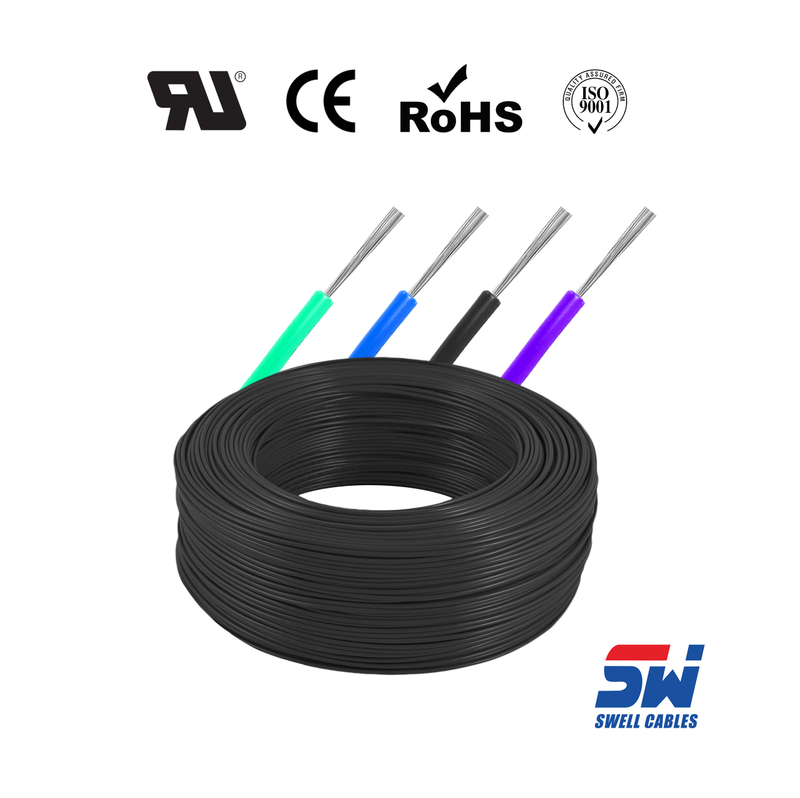

UL10269 is a high-voltage PVC hook-up wire designed for internal wiring in electrical equipment. Rated for 1000VAC/1250VDC and temperatures up to 105°C, it features flame-retardant PVC insulation for durability and safety. Optional oil-resistant versions enhance performance in industrial environments. Ideal for control panels, power modules, transformers, and industrial cabinets. SWELL CABLES offers custom sizes and processing for OEM needs.
KEY PARAMETERS
Temperature Rating: 80°C / 90°C / 105°C
Voltage Rating: 1000VAC / 1250VDC
Conductor: Stranded Tinned Copper
Insulation: Flame-retardant PVC
Optional: Oil-resistant
Standards: UL 758 AWM
Compliance: RoHS, REACH
PRODUCT STRUCTURE
Suitable for high-voltage applications
ADVANTAGE
High voltage resistance up to 1000V
Flame-retardant insulation
Optional oil resistance
Flexible and durable
Suitable for industrial use
APPLICATIONS
Control panels
Power modules
Transformers
Industrial cabinets
SPECIFICATIONS
CONDUCTOR | INSULATION | Conductor resistance 20℃ | DIELECTRIC STRENGTH |
AWG | Construction | Diameter | Nominal Thickness | Diameter | Tinned copper | Bare Copper | VAC,1MIN |
30 | 7/0.10 | 0.30 | 0.76 | 1.90 | 381 | 354 | 3000 |
28 | 7/0.127 | 0.38 | 2.00 | 239 | 223 | 3000 |
26 | 7/0.16 | 0.48 | 2.10 | 150 | 140 | 3000 |
24 | 11/0.16 | 0.61 | 2.20 | 94.2 | 87.6 | 3000 |
22 | 17/0.16 | 0.76 | 2.35 | 59.4 | 55.4 | 3000 |
20 | 26/0.16 | 0.94 | 2.55 | 36.7 | 34.6 | 3000 |
