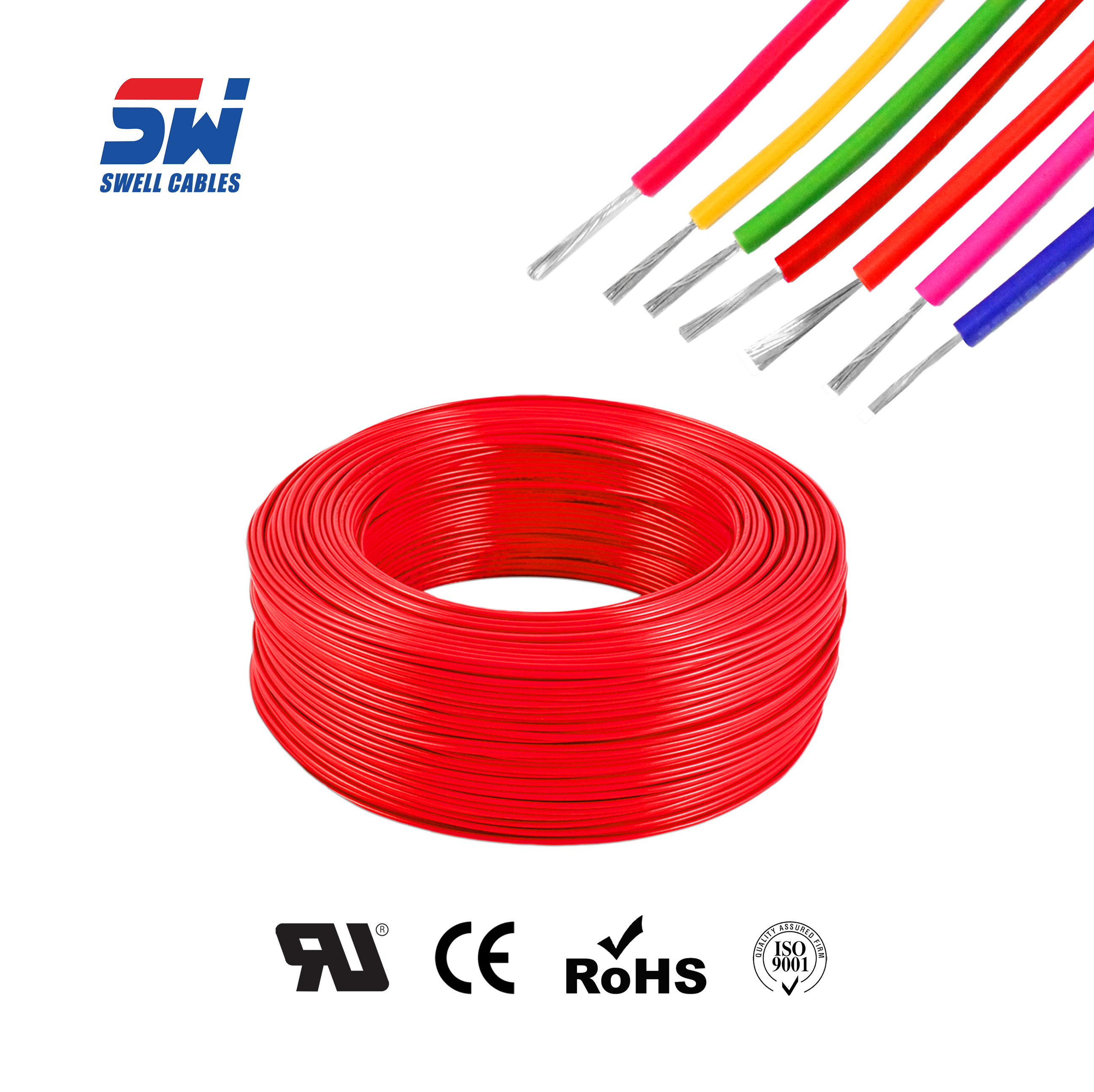

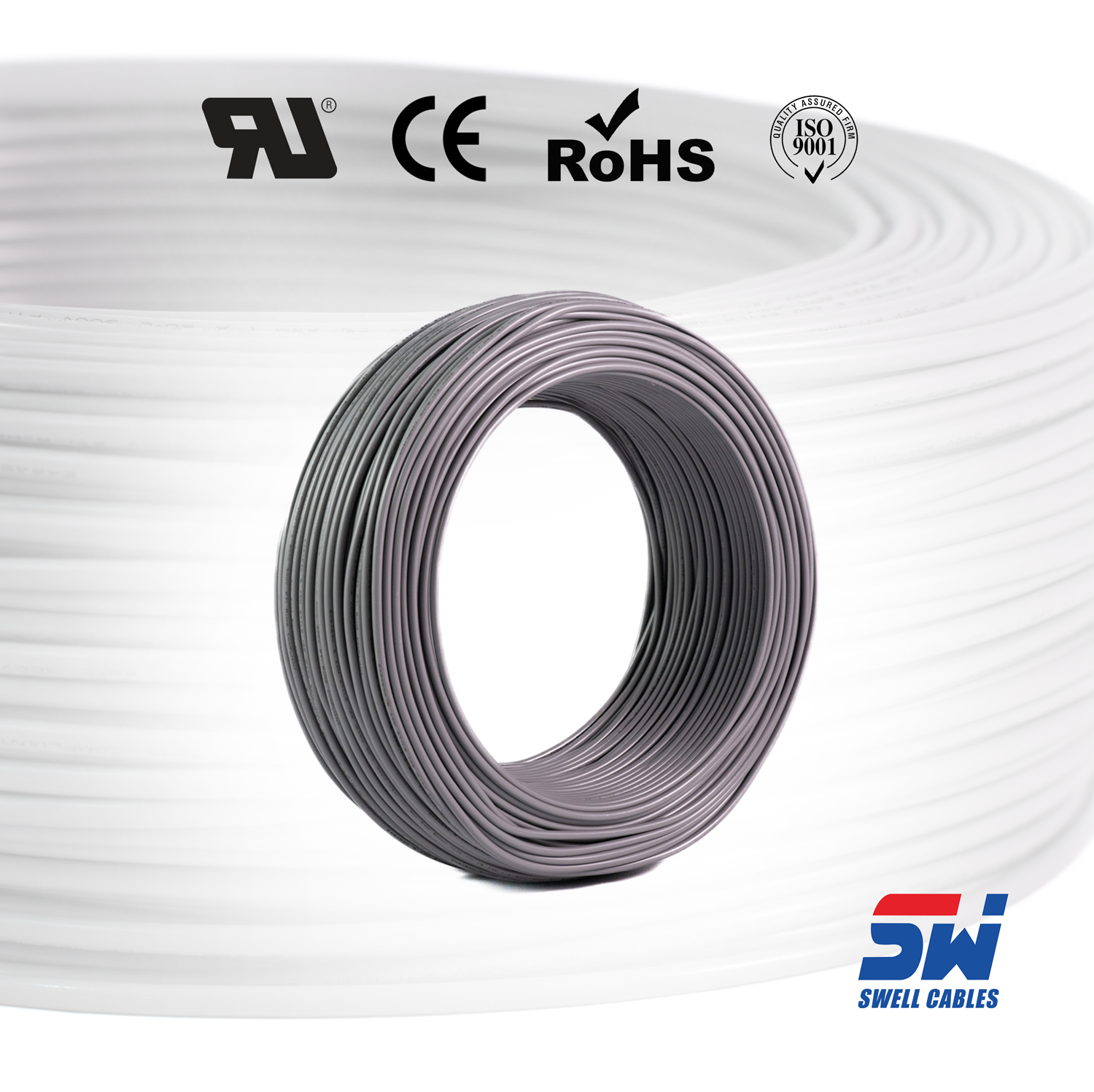

UL1332 FEP High Temperature Wire - Extreme Heat Resistant Cable

UL1332 wire is a high-temperature resistant single-core wire insulated with FEP fluoropolymer, designed for internal wiring in environments requiring superior heat and chemical resistance. Manufactured in compliance with UL758 standards, it ensures stable electrical performance even under continuous high-temperature conditions.

Compared to PVC wires such as UL1007, UL1332 offers significantly higher temperature resistance (up to 200°C) and improved durability against harsh chemicals, oils, and solvents.

Swell Cables supplies UL1332 wires with high-quality tinned copper conductors, optimized for precision stripping and automated processing, ensuring efficiency in modern manufacturing environments.

KEY PARAMETERS

• Temperature Rating: 200℃ (392°F)

• Voltage Rating: 300Volts

• Conductor: Stranded, Tinned Copper

• Insulation: FEP (Fluorinated Ethylene Propylene)

• Standards: UL 758, UL1581, CSA C22-2, IEC 60228

• Flame Propagation: UL VW-1, CSA FT1

• Regulatory Compliance: meets the requirements of RoHS, REACH, LVD 2014/35/EU.

• Colors: Black, White, Red, Blue, Yellow, Green, Transparent

PRODUCT STRUCTURE

Conductor: Tinned copper (solid or stranded)

Insulation: High-performance FEP fluoropolymer

Designed for extreme temperature resistance and precision processing

ADVANTAGE

• Excellent high temperature resistance up to 200°C

• Outstanding chemical and solvent resistance

• Low friction surface for easy processing and routing

• Superior electrical insulation stability

• Flame retardant and safe for industrial environments

• Ideal for harsh and high-reliability applications

• Supports custom processing (cutting, stripping, harnessing)

APPLICATIONS

UL1332 hook up wire is widely used in:

• Industrial equipment

• Heating systems

• Motors and transformers

• Aerospace and aviation systems

• Automotive high-temperature zones

• Power supplies

• Electronic control systems

Typical customers include: BYD, GEELY, SHANCMAN

SPECIFICATIONS

Swell Cable is proud to offer our Custom Wire Services

Swell Cables provides full-service custom wire manufacturing, supporting:

• Engineering projects

• High-temperature applications

• OEM and bulk production

• Precision electronic assembly

If you have any questions or need any information about our Services, feel free to contact us! It only takes one call or message to get experienced assistance.

COMPLIANCE & CERTIFICATION

Our UL1332 wires comply with international standards and regulations:

• UL Certified (UL758 / UL1332)

• CSA C22.2

• IEC 60228

• RoHS Directive 2015/65/EU

• REACH EC 1907/2006

• Low Voltage Directive 2014/35/EU

UL File Number: E484530

PACKAGING & DELIVERY

• Standard coil or spool packaging

• Custom packaging available

• Fast production lead time

• Export-ready packaging

CUSTOMIZATION OPTIONS

We support full customization:

• Wire gauge (AWG)

• Color

• Length (cut-to-length)

• Pre-stripped ends

• Harness/kits supply

FAQ

Q1: What is UL1332 wire used for?

UL1332 wire is used in high-temperature environments such as industrial equipment, heating systems, and aerospace electronics.

Q2: What is the difference between UL1332 and UL1007?

UL1332 supports up to 200°C and uses FEP insulation, while UL1007 is PVC-based and rated for 80°C.

Q3: Is UL1332 suitable for harsh environments?

Yes, it offers excellent resistance to chemicals, oil, and extreme temperatures.

Q4: Do you provide custom wire solutions?

Yes, we offer customized sizes, colors, cutting, and stripping services.
