Bare Copper vs Tinned Copper Conductors: Which One Should You Choose? | SWELL CABLES

Article Summary

When selecting a wire or cable, most buyers focus on insulation type, voltage rating, or conductor size. However, conductor material is equally important. One of the most common questions in the cable industry is whether to choose bare copper conductors or tinned copper conductors. Both offer excellent electrical conductivity, but they differ significantly in corrosion resistance, solderability, service life, and cost. This guide explains the differences between bare copper and tinned copper conductors and helps you select the best option for your application.

Why Conductor Selection Matters

The conductor is the core of every wire and cable.

Its primary function is to carry electrical current efficiently and reliably throughout the system.

Choosing the wrong conductor material can lead to:

·         Reduced service life

·         Corrosion problems

·         Higher maintenance costs

·         Connection failures

·         Increased production expenses

The two most commonly used conductor types in the wire and cable industry are:

·         Bare Copper Conductor

·         Tinned Copper Conductor

Although both are made primarily of copper, their performance characteristics differ considerably depending on the operating environment.

What Is Bare Copper?

Bare copper refers to pure copper conductors without any surface coating.

Because copper possesses excellent electrical conductivity, it has been the preferred conductor material for electrical applications for more than a century.

Bare copper conductors are widely used in:

·         Building wires

·         Control cables

·         Power cables

·         Automotive wires

·         Electronic equipment

·         Appliance wiring

The reddish metallic appearance is the natural color of copper.

Advantages of Bare Copper Conductors

1. Excellent Electrical Conductivity

Bare copper offers one of the highest electrical conductivity levels among commercial conductor materials.

This results in:

·         Lower resistance

·         Reduced voltage drop

·         Improved energy efficiency

For applications where maximum conductivity is critical, bare copper remains an excellent choice.

2. Lower Cost

Since no additional plating process is required, bare copper conductors are generally less expensive than tinned copper conductors.

For large-volume projects, this cost difference can be significant.

3. Easy Availability

Most standard cables worldwide are manufactured using bare copper conductors, making sourcing and procurement easier.

4. Ideal for Dry Indoor Environments

In controlled environments with low humidity and minimal exposure to corrosive substances, bare copper provides reliable long-term performance.

Limitations of Bare Copper

Despite its advantages, bare copper also has several limitations.

Oxidation Over Time

When exposed to air, moisture, and contaminants, copper naturally oxidizes.

This oxidation can create:

·         Darkened conductor surfaces

·         Increased contact resistance

·         Difficult soldering conditions

·         Reduced connection reliability

Although oxidation usually affects only the conductor surface, it can become problematic in harsh environments.

Reduced Corrosion Resistance

Bare copper is more vulnerable to:

·         Salt spray

·         Marine environments

·         High humidity

·         Industrial chemicals

·         Sulfur-containing atmospheres

For these applications, additional protection is often recommended.

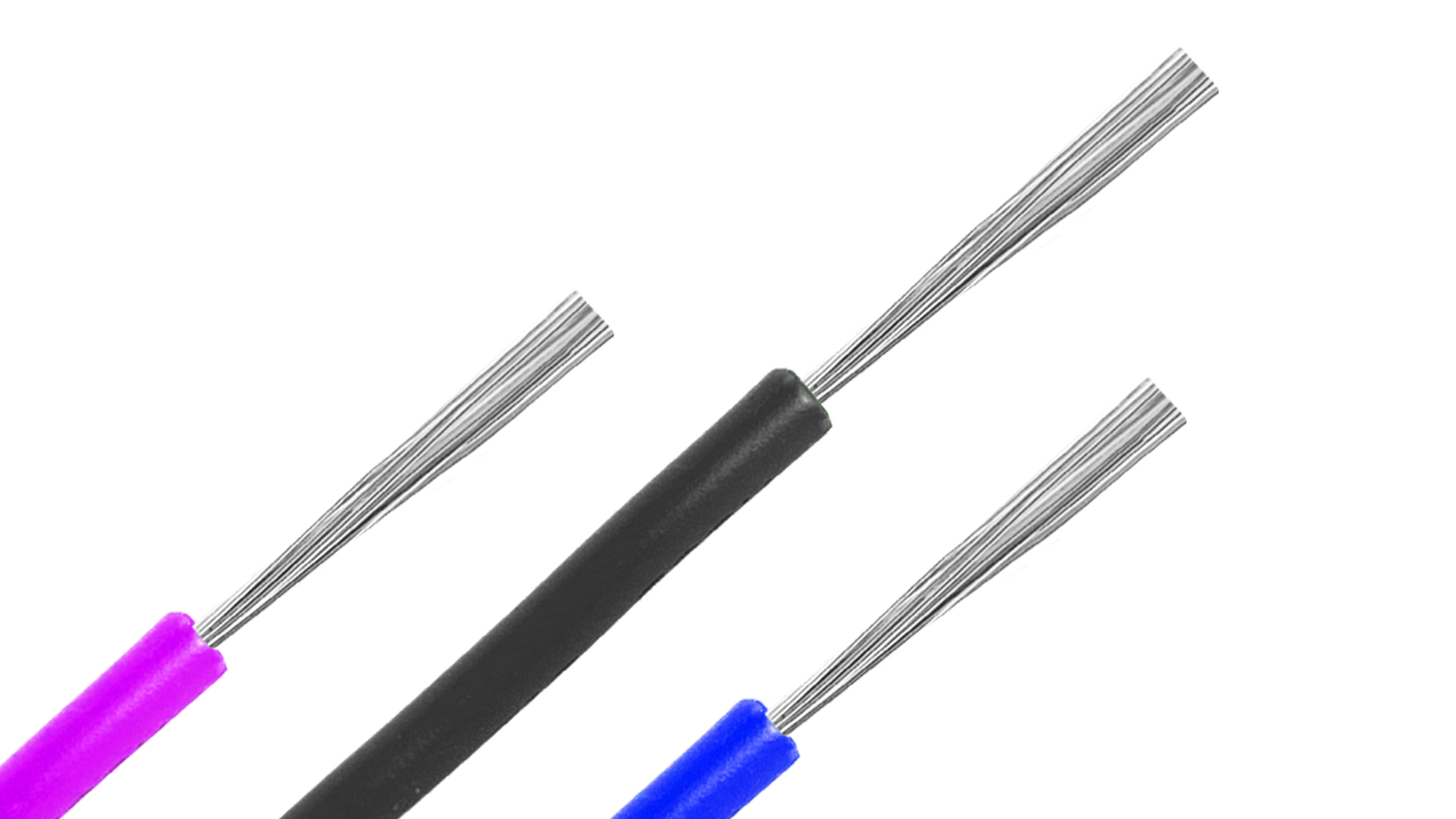

What Is Tinned Copper?

Tinned copper conductors are manufactured by coating copper strands with a thin layer of tin before stranding.

The conductor core remains copper, while the tin coating protects the surface from environmental exposure.

Tinned copper conductors are commonly used in:

·         Marine cables

·         Automotive wiring

·         EV cables

·         Solar cables

·         Industrial control cables

·         Outdoor applications

·         Aerospace wiring

The conductor appears silver in color because of the tin coating.

Advantages of Tinned Copper Conductors

1. Superior Corrosion Resistance

The primary benefit of tinned copper is enhanced corrosion protection.

The tin coating helps protect the copper from:

·         Moisture

·         Saltwater

·         Chemicals

·         Oxidation

·         Industrial pollutants

This significantly extends cable service life in harsh environments.

2. Better Solderability

Tinned copper is easier to solder than oxidized bare copper.

Benefits include:

·         Faster assembly

·         More reliable connections

·         Improved manufacturing efficiency

·         Consistent solder joints

This is especially important in electronics and wire harness production.

3. Longer Storage Life

Bare copper conductors may oxidize during storage.

Tinned copper conductors maintain their appearance and solderability for much longer periods.

This advantage is valuable for inventory management and long-term projects.

4. Improved Reliability in Harsh Environments

Industries such as marine, automotive, solar energy, and industrial automation often prefer tinned copper because of its superior durability.

Does Tinned Copper Affect Conductivity?

This is one of the most common questions buyers ask.

The answer is:

Practically speaking, no.

Since the tin layer is extremely thin and the conductor core remains copper, the conductivity difference between bare copper and tinned copper is minimal in most applications.

For typical power, control, and signal transmission systems, users will not notice a meaningful performance difference.

Bare Copper vs Tinned Copper Comparison

Bare Copper vs Tinned Copper in Automotive Applications

Both conductor types are used in automotive wiring.

Bare Copper Is Suitable For:

·         Interior wiring

·         Dry vehicle environments

·         Cost-sensitive applications

·         Standard harness systems

Tinned Copper Is Preferred For:

·         Electric vehicles (EVs)

·         Battery systems

·         Engine compartments

·         Heavy-duty vehicles

·         High-humidity environments

·         Long-life harnesses

Many premium automotive and EV wire manufacturers use tinned copper conductors to improve long-term reliability.

Why Marine Cables Almost Always Use Tinned Copper

Marine environments are among the harshest operating conditions for electrical cables.

Saltwater exposure accelerates copper corrosion dramatically.

For this reason, most marine cable standards recommend or require tinned copper conductors.

Benefits include:

✔ Better resistance to salt spray

✔ Longer service life

✔ Reduced maintenance

✔ Improved connection reliability

✔ Better performance in humid environments

Which Conductor Is Better for Solar Cables?

Solar installations typically operate outdoors for 20–30 years.

Tinned copper conductors provide:

·         Better weather resistance

·         Improved moisture protection

·         Longer operational lifespan

·         Enhanced connection stability

This is why most premium solar cables utilize tinned copper conductors.

How to Choose Between Bare Copper and Tinned Copper

Choose Bare Copper If:

·         Budget is a primary concern

·         Installation is indoors

·         Environmental conditions are mild

·         Corrosion risk is low

·         Standard electrical applications are involved

Choose Tinned Copper If:

·         High humidity exists

·         Outdoor installation is required

·         Marine environments are involved

·         Automotive applications require maximum reliability

·         Solar energy systems are used

·         Long-term durability is critical

Why Choose SWELL CABLES?

SWELL CABLES manufactures wire and cable products with both bare copper and tinned copper conductors.

Our product range includes:

Bare Copper Cable

·         UL1007

·         UL1015

·         UL2464

·         UL2468

·         GPT Wire

·         Control Cables

Tinned Copper Cable

·         GXL Wire

·         TXL Wire

·         AVSS Wire

·         EV Cables

·         Solar Cables

·         Marine Cables

·         Custom Harness Wire

We provide:

·         High-purity copper conductors

·         Precision tin-plating technology

·         Customized cable solutions

·         OEM & ODM support

·         RoHS & REACH compliant materials

·         Strict quality control

·         Global export service

Conclusion

Bare copper and tinned copper conductors both offer excellent electrical performance, but they are designed for different environments and priorities.

Bare copper remains the most economical solution for standard indoor electrical applications, while tinned copper provides superior corrosion resistance, solderability, and long-term reliability in demanding environments.

When selecting a cable, consider not only the conductor cost but also the installation environment, maintenance requirements, and expected service life.

If you need help choosing the right conductor type for your project, SWELL CABLES can provide professional technical support and customized cable solutions.

Contact SWELL CABLES today for specifications, samples, and quotations.
